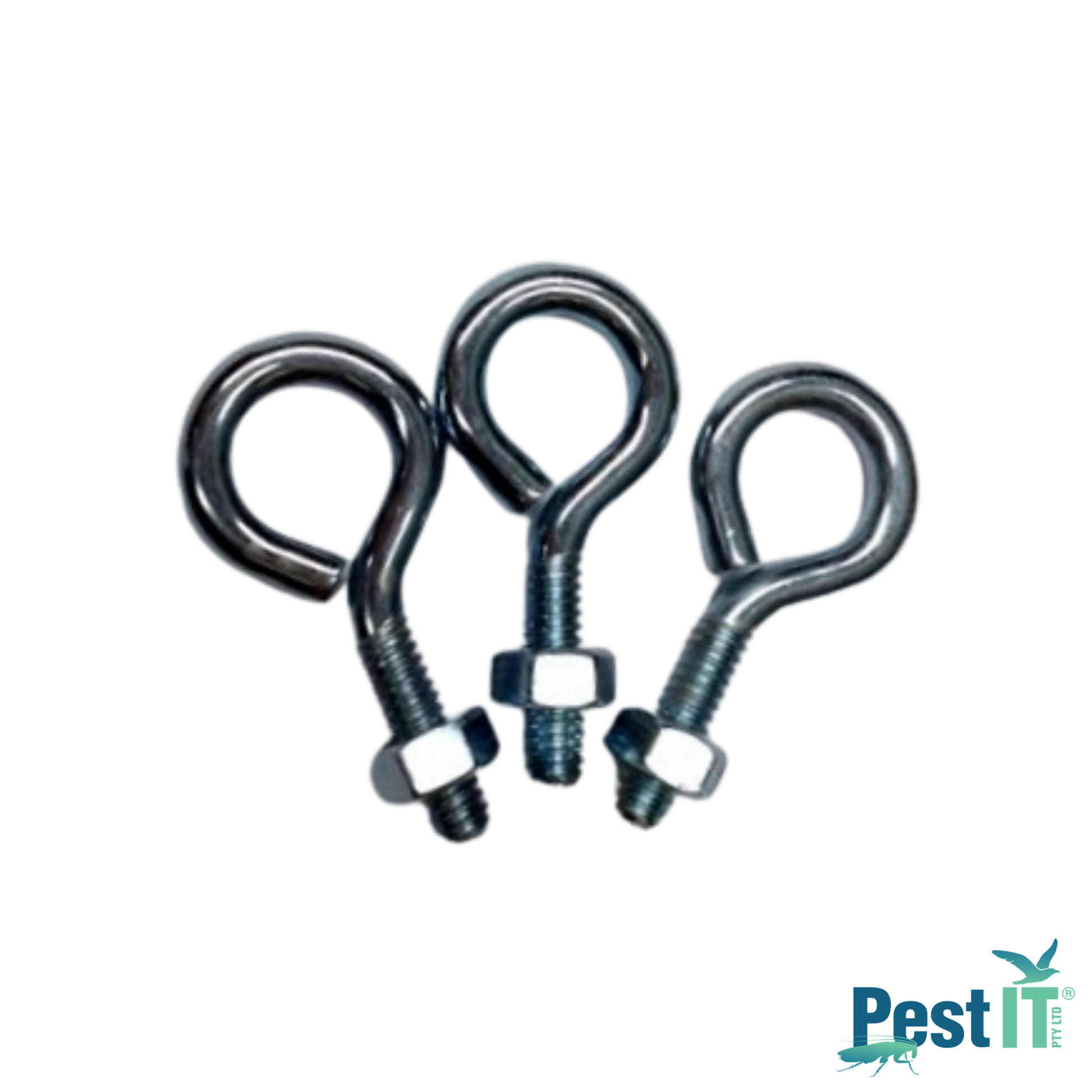

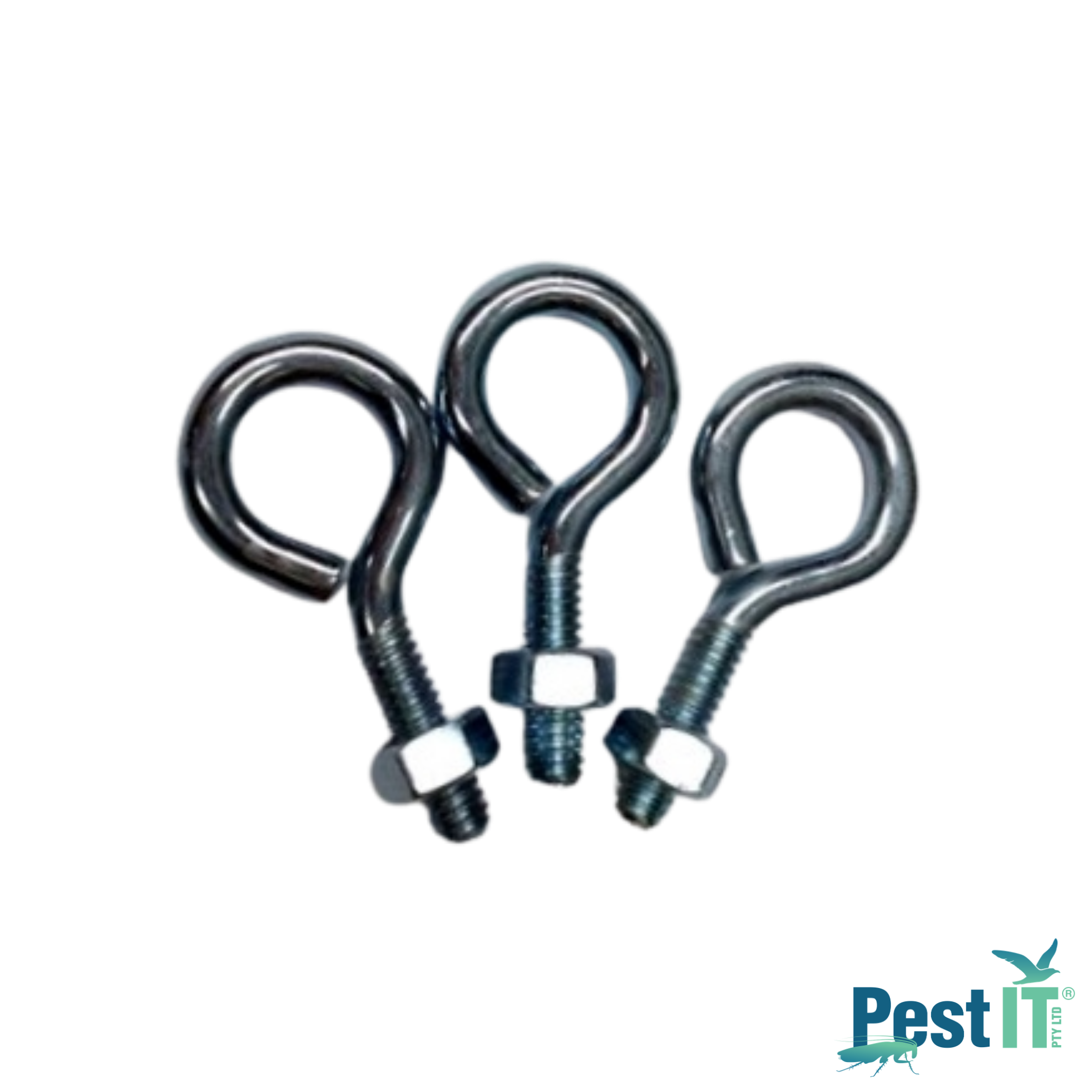

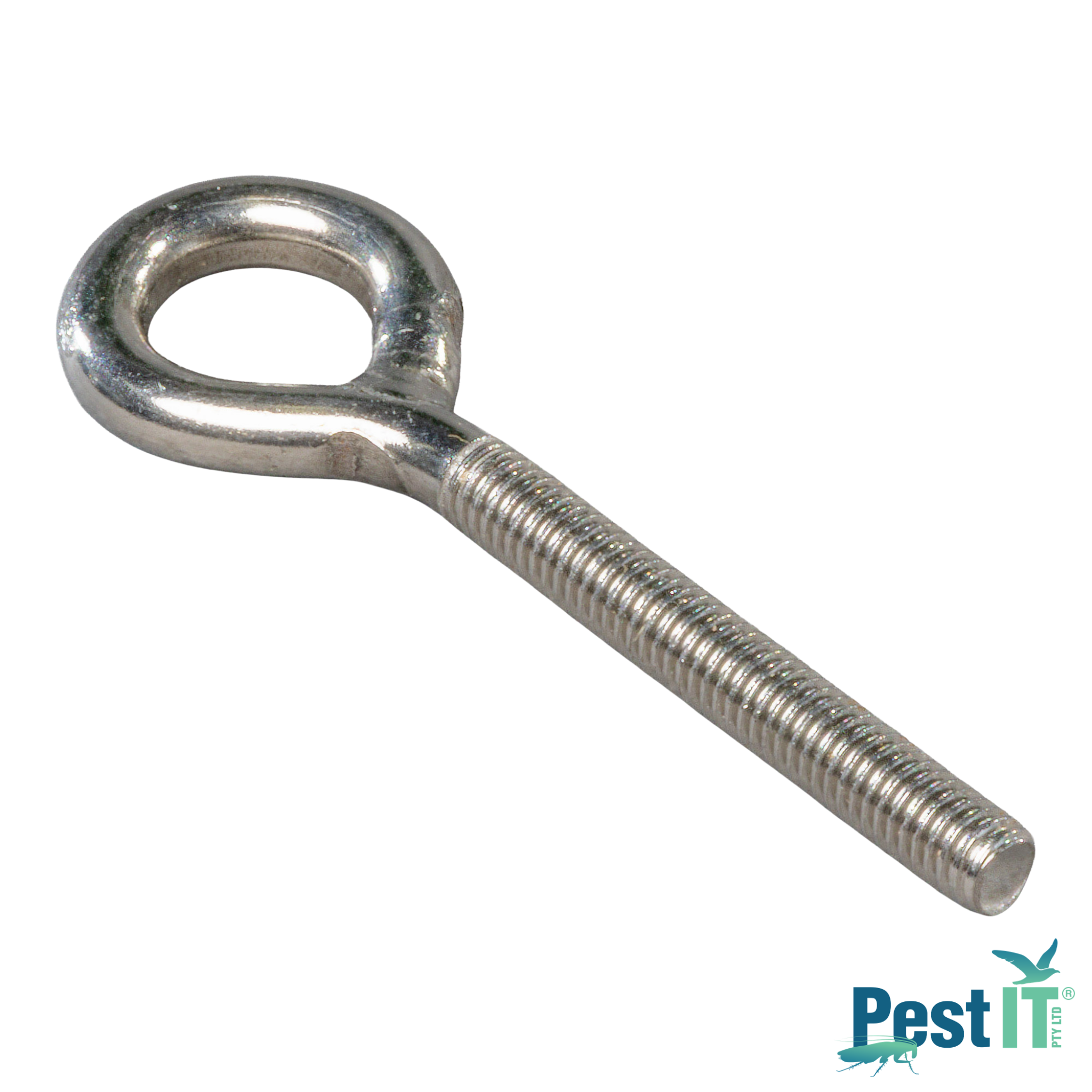

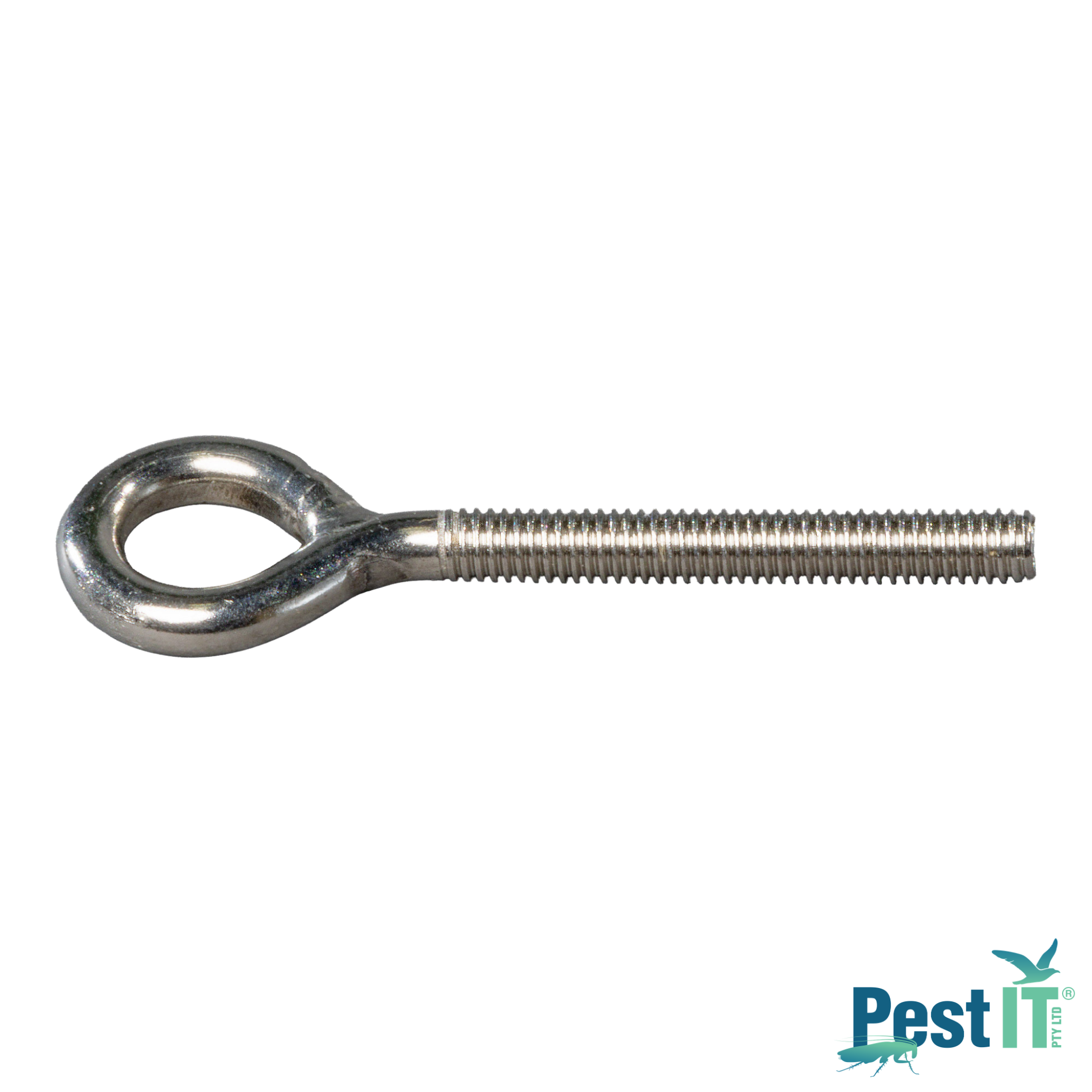

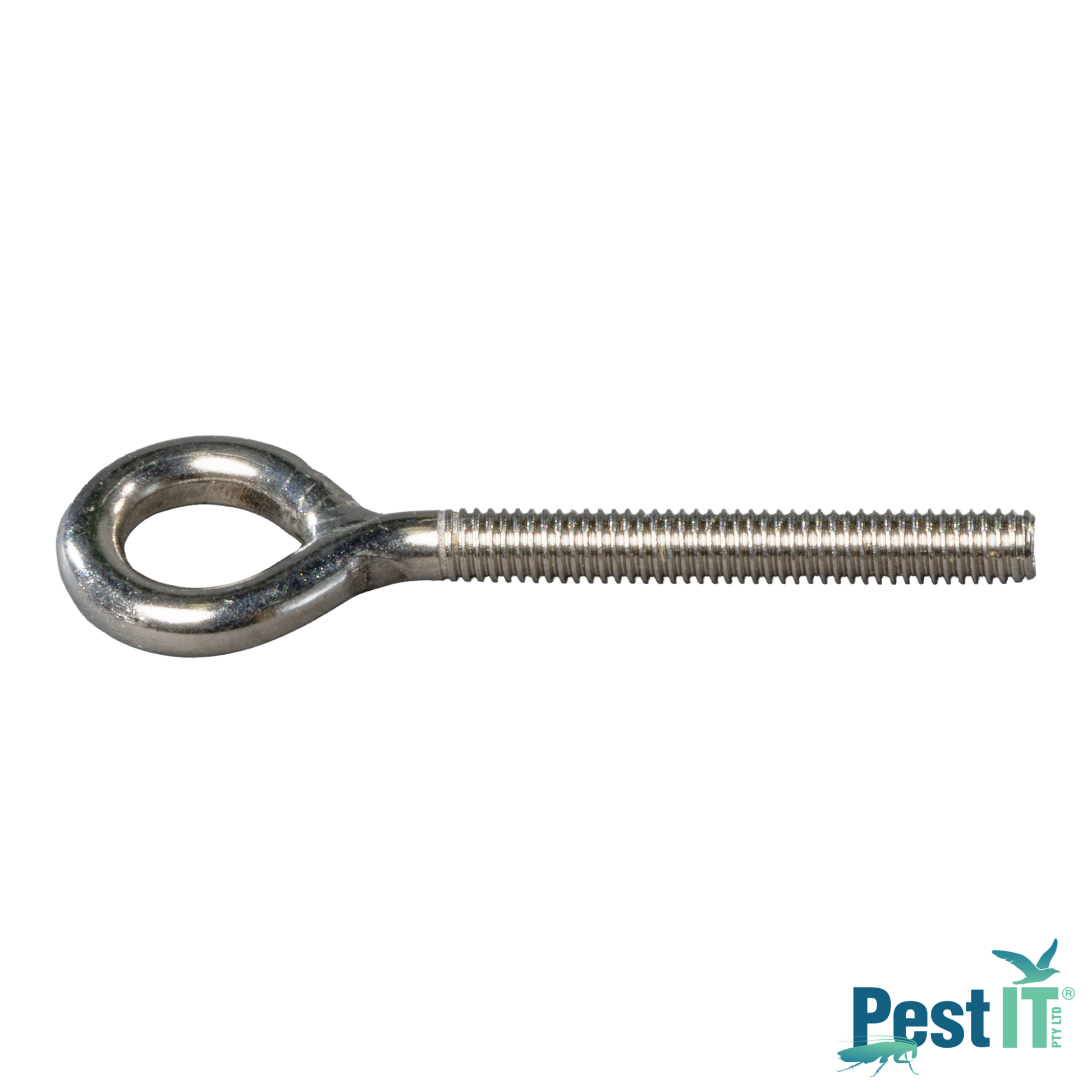

AvePro Eye Bolt w Nut SS

Stainless steel eye bolts for anchoring the cable perimeter of an AvePro bird netting installation to steel structural surfaces. M4 thread with nut. The eye provides the cable attachment point for the Copper Ferrule crimp. Pack of 20.

✔ The correct anchor for steel structural surfaces. Eye Bolts thread into an 6mmM6 hole drilled in the steel beam or section, providing a secure mechanical fixing that carries the cable load for the life of the installation.

✔ Stainless steel construction. Matched to the AvePro stainless steel cable and hardware system. No galvanic corrosion between the anchor and the cable.

✔ Part of a three-anchor system. The installer selects the correct anchor based on the building surface. Eye Bolts for steel. Net Bolts for masonry. Pad Eyes for tin, aluminium, and sheeting. One product per surface type. No guesswork.

Pack Size: 20pk

20pk

$32.89

Shipping calculated at checkout.

SKU: 13-APCP-05

Pest IT Signature Range

Pest IT's own bird management brand and one of Australia's most extensive ranges of professional bird control systems.

Best For

✔ Netting installations on buildings with exposed steel structural elements: steel beams, columns, purlins, portal frames, warehouse structures, and industrial buildings.

✔ Any surface where an 6mm hole can be drilled into steel.

Not For

✘ Masonry surfaces (concrete, brick, tilt slab): use AvePro Net Bolts.

✘ These expand into the masonry like a dyna bolt.

✘ Tin, aluminium sheeting, or surfaces requiring a broad-base fixing: use AvePro Pad Eyes with tech screws or Ramset/Hilti nails.

Not a standalone fixing. Part of a designed cable perimeter system. Always used with Copper Ferrules and Ratchet Crimping Tool.

Advanced IPM

Integrated Pest Management Role

Structural anchor component in the AvePro bird netting system. Eye Bolts are one of the first items installed in a netting job: they anchor the cable perimeter to the building before the cable is run, tensioned, and the net is attached. The installer fixes Eye Bolts at each corner and intermediate anchor point along the cable run on steel surfaces.

Professional Installation

Drill M6 hole into steel structural section. Thread eye bolt and secure. Loop 2.4mm cable through the eye bolt loop. Thread a Copper Ferrule 2.6mm over the cable end and crimp with the Ratchet Crimping Tool to lock the cable permanently.

Component - installation time forms part of the overall cable perimeter installation. Trade Install

Maintenance

Annual inspection. Check eye bolt integrity and cable crimp. Replace any corroded or damaged fixings. Check that cable tension remains within specification.

Safety

WHS at Height applies for all elevated netting installations.
Use correct PPE when drilling into steel structural sections.
Ensure cable crimp is fully complete before loading the system.

Brand: AvePro

Pest IT's own bird management brand and one of Australia's most extensive ranges of professional bird control systems.

More Product Info

About AvePro Eye Bolt w Nut SS

AvePro Eye Bolts are the cable anchor for bird netting installations on steel structural surfaces. An 6mm hole is drilled into the steel beam, or purlin. The Eye Bolt threads in with a nut to secure it. The eye provides the attachment point where the stainless steel cable is looped through and locked in place with a Copper Ferrule crimp. Pack of 20. Stainless steel.

The building surface determines which anchor to use. Eye Bolts are for steel structural sections only. For masonry surfaces (concrete, brick, tilt slab), use AvePro Net Bolts. For tin, aluminium sheeting, timber or surfaces requiring a broad-base fixing, use AvePro Pad Eyes. On jobs with mixed surface types, you may need all three. Pest IT's free design service will specify the correct anchor at each fixing point.

A complete cable perimeter also requires AvePro Stainless Steel Cable 2.4mm, Copper Ferrules 2.6mm, the Ratchet Crimping Tool, Turnbuckles for tensioning, and Intermediate or Multi-Cable Brackets for cable support between anchor points. Contact Pest IT for a free netting design that specifies every component and quantity for your specific job.

Warranty

Pest IT warrants this product against defects in materials and workmanship for a period of 12 months from the date of purchase under normal use and installation conditions. Nothing in this warranty limits your rights under the Australian Consumer Law.
